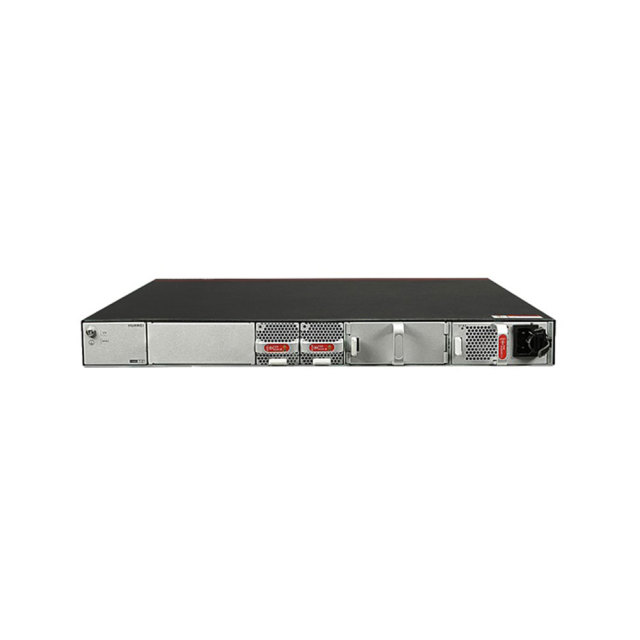

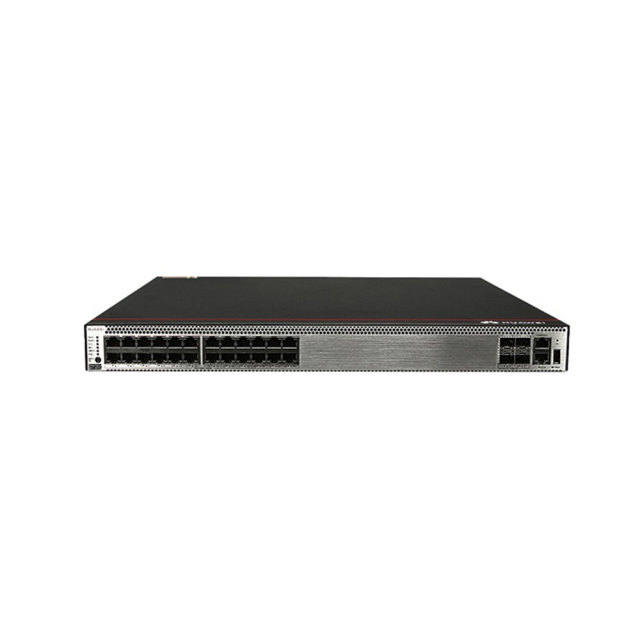

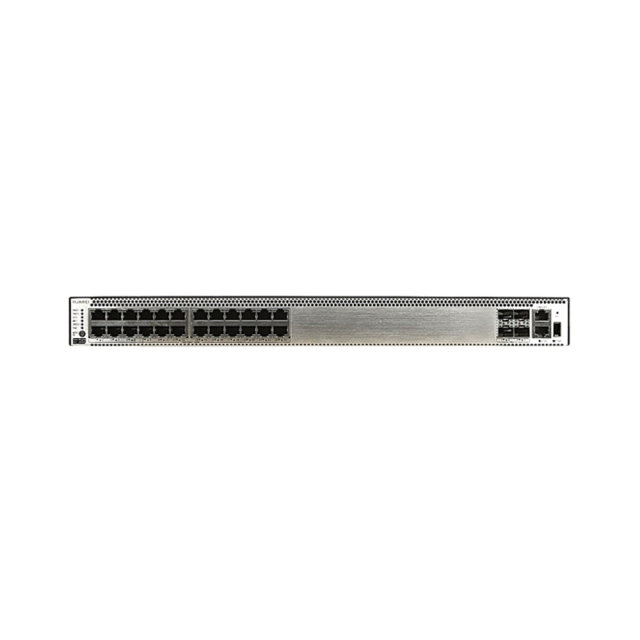

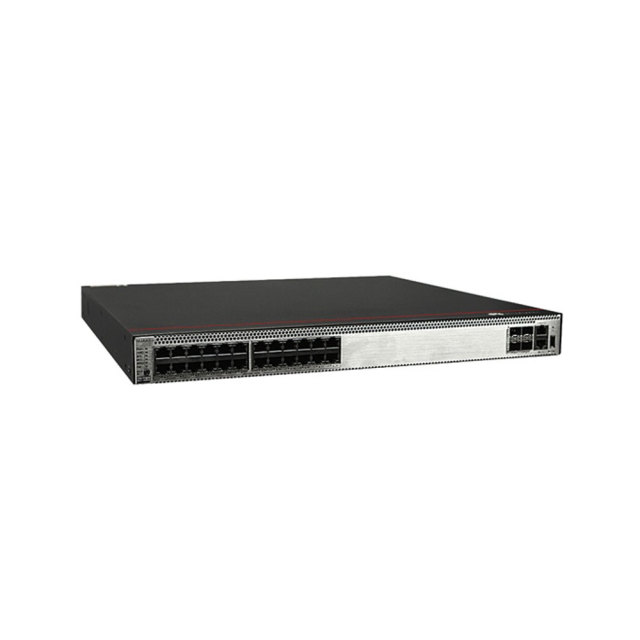

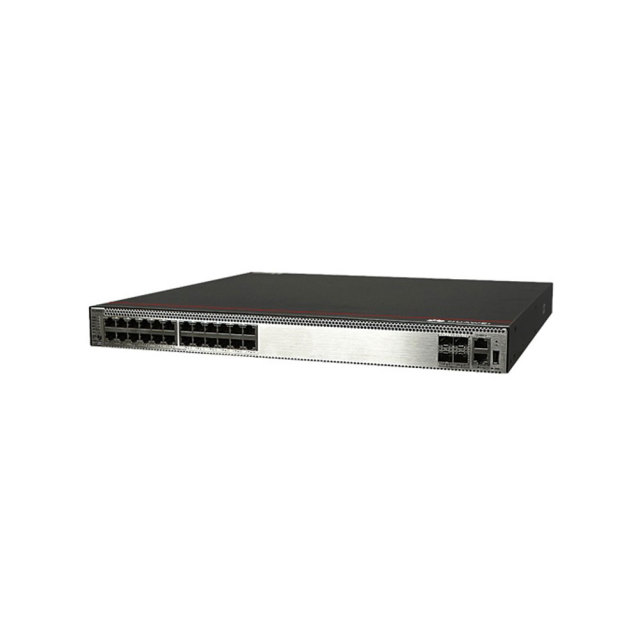

Name: S5731-S24P4X Switch
Brand: MY SHOP
Availability: InStock
Rating: 5 (1 reviews)

Description

The CloudEngine S5731-S24P4X series offers a range of standard gigabit access switches, with all-GE electrical/optical ports and fixed 10 GE uplink ports.

Built on Huawei's unified Versatile Routing Platform (VRP), CloudEngine S5731-S24P4X switches provide enhanced Layer 3 features, simplified Operations & Maintenance (O&M), Intelligent Stack (iStack) technology — allowing multiple stacking-capable switches to function as a single logical switch — flexible Ethernet networking, and mature Internet Protocol version 6 (IPv6) features.

The series is widely used in a range of scenarios, including enterprise campus access and aggregation, as well as data center access.

Specification of S5731-S24P4X
Memory (RAM)	2 GB
Flash	1 GB in total. To view the available flash memory size, run the display version command.
Mean time between failures (MTBF)	57.21 years
Availability	> 0.99999
Service port surge protection	Common mode: ±6 kV
Power supply surge protection	Using AC power modules: ±6 kV in differential mode, ±6 kV in common mode Using DC power modules: ±2 kV in differential mode, ±4 kV in common mode
Dimensions (H x W x D)	Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 442.0 mm x 420.0 mm (1.72 in. x 17.4 in. x 16.5 in.) Maximum dimensions (the depth is the distance from ports on the front panel to the handle on the rear panel): 43.6 mm x 442.0 mm x 448.0 mm (1.72 in. x 17.4 in. x 17.7 in.)
Weight (with packaging)	8.6 kg (18.96 lb)
Stack ports	10GE SFP+ ports on the front panel
RTC	Supported
RPS	Not supported
PoE	Supported
Rated voltage range	AC input: 100 V AC to 130 V AC, 200 V AC to 240 V AC, 50/60 Hz High-Voltage DC input: 240 V DC DC input: -48 V DC to -60 V DC
Maximum voltage range	AC input: 90 V AC to 290 V AC, 45 Hz to 65 Hz High-Voltage DC input: 190 V DC to 290 V DC DC input: -38.4 V DC to -72 V DC
Maximum power consumption (100% throughput, full speed of fans)	Not providing the PoE function: 121 W 100% PoE loads: 977 W (PoE: 720 W)
Typical power consumption (30% of traffic load, tested according to ATIS standard)	95 W
Operating temperature	-5°C to +45°C (23°F to 113°F) at an altitude of 0-1800 m (0-5906 ft.)
Storage temperature	-40°C to +70°C (-40°F to +158°F)
Noise under normal temperature (27°C, sound power)	< 62.3 dB(A)
Relative humidity	5% to 95%, noncondensing
Operating altitude	0-5000 m (0-16404 ft.)
Certification	EMC certification Safety certification Manufacturing certification
Part number	02353AHX 02353AHX-001 02353AHX-003

S5731-S24P4X Switch

24xGE RJ45/4x10GE SFP+/PoE+Model: S5731-S24P4X

Description

24xGE RJ45/4x10GE SFP+/PoE+
Model: S5731-S24P4X
