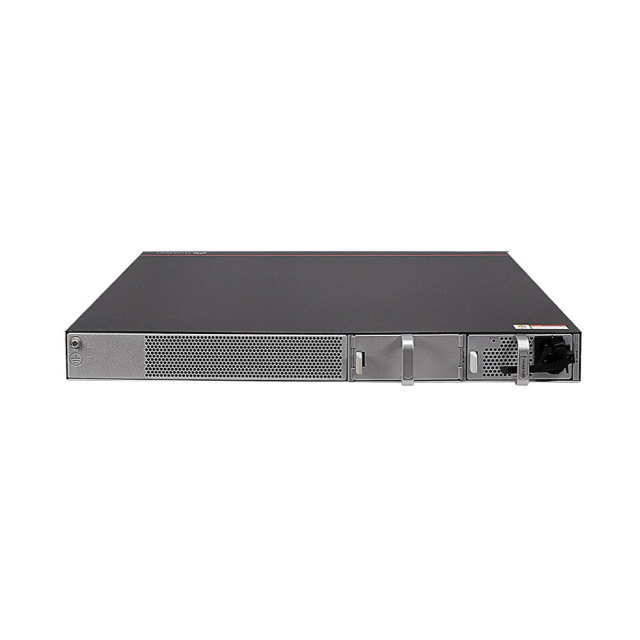

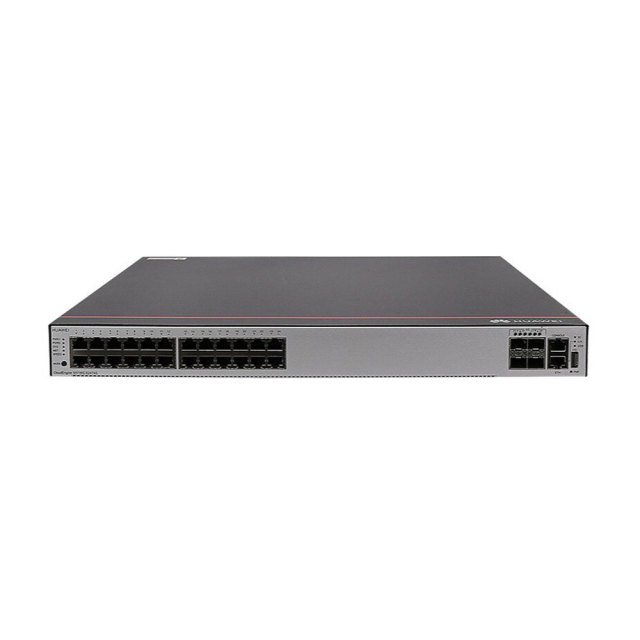

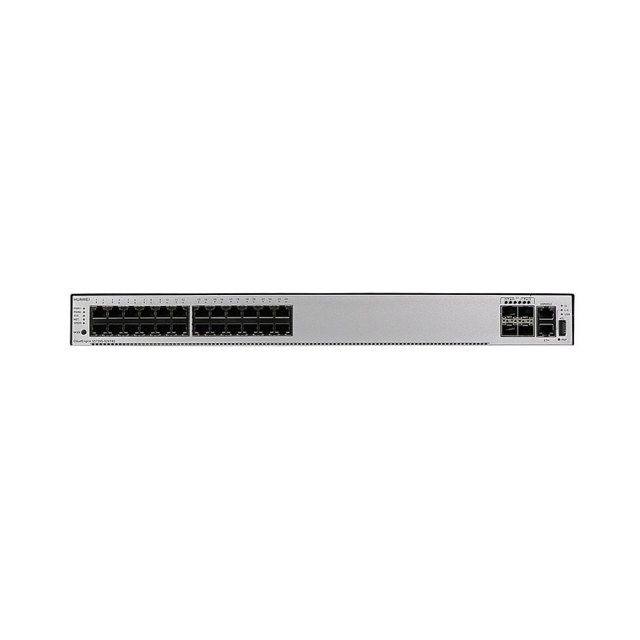

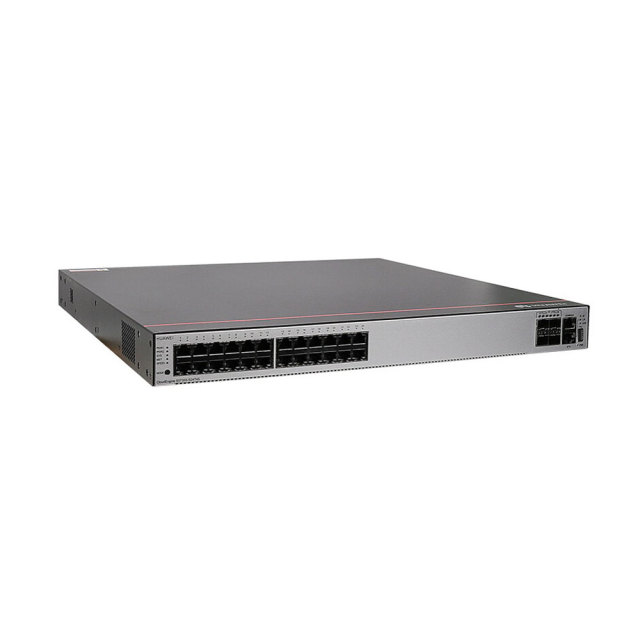

| Specification of S5735-S24T4X | |
|
Memory (RAM) |
1 GB |
|
Flash |
512 MB in total. To view the available flash memory size, run the display version command. |
|
Mean time between failures (MTBF) |
69.42 years |
|
Fixed port |
GE port: 24 |
|
Management port |
ETH management port: Supported Console port(RJ45): Supported USB port: USB 2.0 |
|
CPU |
Frequency: 1000 MHz Cores: 4 |
|
Availability |
> 0.99999 |
|
Service port surge protection |
Common mode: ±7 kV |
|
Power supply surge protection |
|
| Dimensions (H x W x D) |
|
| Weight (with packaging) | 7.21 kg (15.9 lb) |
| Stack ports | Any 10/100/1000BASE-T ports or 10GE SFP+ ports (applicable in V200R019C10 and later versions) |
| RTC | Supported |
| RPS | Not supported |
| PoE | Not supported |
| Rated voltage range |
|
| Maximum voltage range |
|
| Maximum power consumption (100% throughput, full speed of fans) | 46 W |
Typical power consumption (30% of traffic load)
|
31 W |
| Operating temperature | -5°C to +50°C (23°F to 122°F) at an altitude of 0-1800 m (0-5906 ft.) |
| Short-term operating temperature | -5°C to +55°C (23°F to 131°F) at an altitude of 0-1800 m (0-5906 ft.) |
| Storage temperature | -40°C to +70°C (-40°F to +158°F) |
| Noise under normal temperature (27°C, sound power) | < 58.9 dB(A) |
| Relative humidity | 5% to 95%, noncondensing |
| Operating altitude | 0-5000 m (0-16404 ft.) |
| Certification |
|
| Part number | 98010938 |
